Keelson logo, a motor vessel in profile
Fig. 1 Keelson, the back bone of your vessel.

Keelson

Keep your workloads up-to-date.

01 Our Mission

Keelson's mission: great operator UX.

At its heart, an image updater is a simple piece of software, so it follows that it should be simple to configure and simple to understand what it has and has not done. Keelson aims to live up to those expectations. Learn how below.

02 How it works

Watch. Poll. Compare. Update.

  1. Watch

    Subscribes to events for every workload Keelson controls, across the whole cluster or only the namespaces you list.

  2. Poll

    Queries the image repository for tags on a schedule you set, with the registry credentials the workload uses.

  3. Compare

    Ranks tags and decides whether a newer one qualifies under the policy in the annotation.

  4. Update

    Writes the new tag. Your workload deploys the way it always does, rolling or otherwise, with configuration untouched.

03 Strengths

Keelson's Strengths

Logging

Key info on console. Full debug inside.

Keelson only logs useful information to the console. When it launches it tells you the version of Keelson, the version of the image, and all the configuration values. Then the processes it starts. Then the number of watched workloads and which ones are under Keelson's control. If you need more, full debug logs wait inside the pod for inspection.

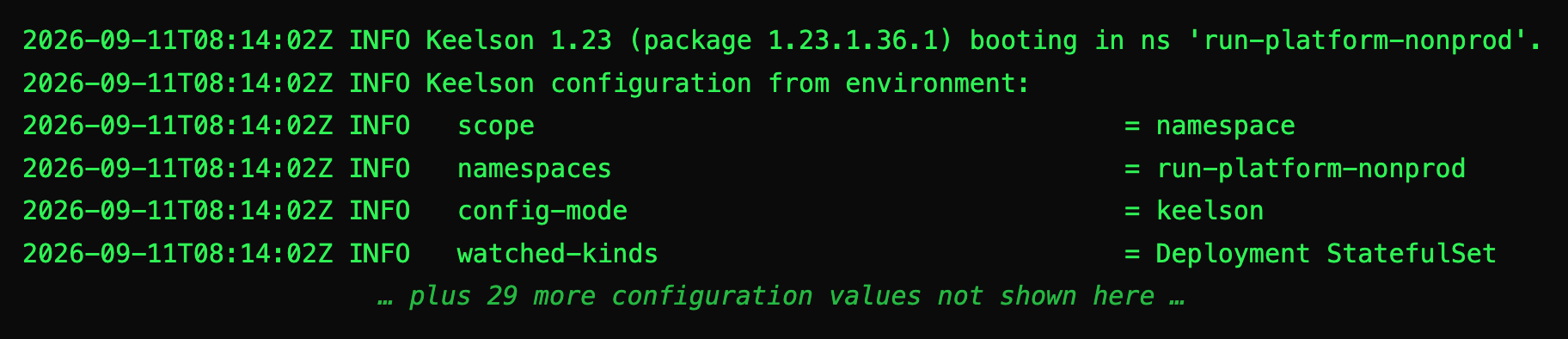

Keelson boot banner, then the first of its configuration values
Startup, the opening lines

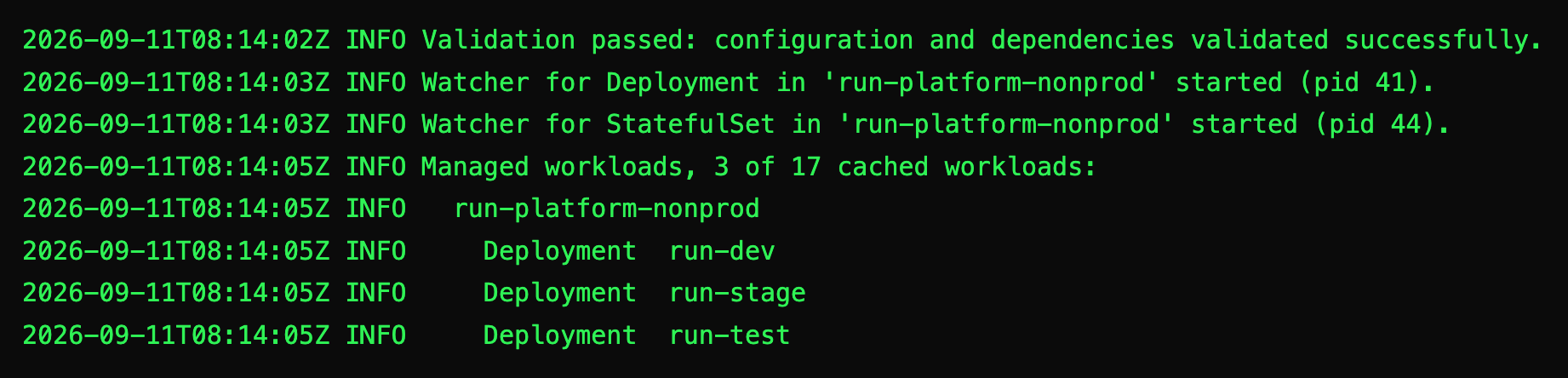

Validation passing, watchers starting, and the list of managed workloads
Startup, validation through the managed set

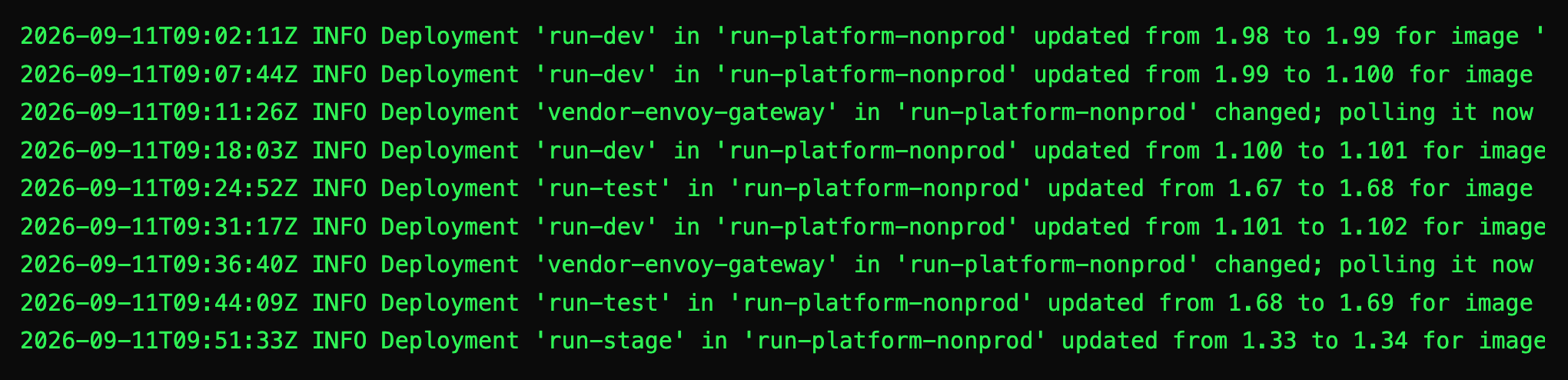

A sequence of workload image updates and re-polls
A morning of updates

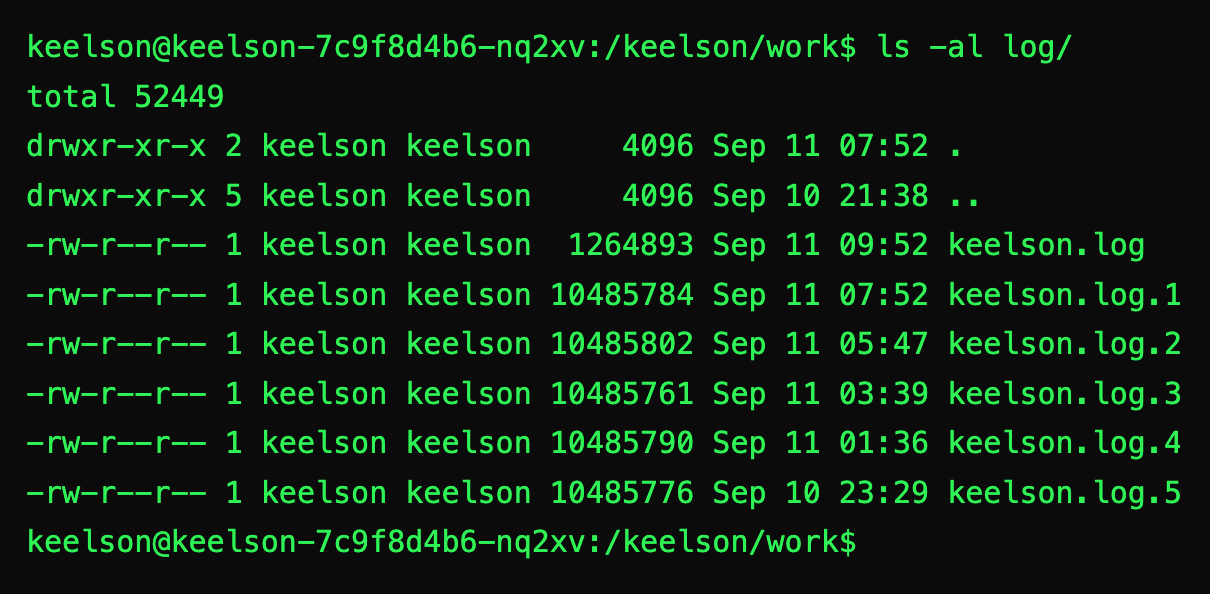

Directory listing of the current log file and its five rotated backups
The full trail, inside the pod

Configuration

Auto by convention. Override as needed.

Registries configuration exists to allow Keelson to query registries for workloads that pull images without imagePullSecrets, such as with various cloud permissions models. Its secondary purpose is to allow more efficient registry connections for multiple workloads with the same registry and credentials pair, by caching the credentials and using them through a whole cycle for all images with the same registry.

Each entry is keyed by a registry host and each has an auth mode. For secret auth mode the associated secret name and .auth key is the same as the registries key where possible, and mapped to a similar value where not. Overrides are available for both the secret name and the .auth key, usable alone or both together for explicit configuration.

registries.yaml
# mounted from the keelson ConfigMap at /configmap/registries.yaml
registries:
  # Cloud identity, nothing to store and nothing to rotate
  123.dkr.ecr.us-east-1.amazonaws.com:
    auth-mode: aws
  europe-docker.pkg.dev:
    auth-mode: gcp
  myregistry.azurecr.io:
    auth-mode: azure
  # Auto secret name and key, by convention
  ghcr.io:
    # Reads from the same namespace Keelson is in
    auth-mode: secret # secret `ghcr.io` .auth key `ghcr.io`
  reg.example:5000:
    auth-mode: secret # secret `reg.example-5000` .auth key `reg.example:5000`
    namespace: run-stage
  # Mixed configuration
  reg.example:5001:
    auth-mode: secret # .auth key `reg.example:5001`
    secret-name-override: shared-pull-creds
  reg.example:5002:
    auth-mode: secret # secret `reg.example-5002`
    secret-key-override: https://reg.example:5002/v1/
  # Explicit
  reg.example:5003:
    auth-mode: secret
    namespace: run-test
    secret-name-override: reg-example-5003-creds
    secret-key-override: https://reg.example:5003/v1/

A registry with no entry relies on the workload resource, and if there is no imagePullSecrets present it's treated as anonymous. By default if the central credential fails to connect and the workload has its own credential then that is tried as a fallback. If the workload credential fails and the KEELSON_RESPECT_SA_PULL_SECRETS service account check is enabled and the service account has a credential then that's tried too.

A workload can opt out of central credential use by setting keelson.pro/credentials to respect-pod-spec if it's known to require a different one to the central configuration. Available values for keelson.pro/credentials are:

central-then-pod-speccentral first, then the workload's own imagePullSecrets
centralcentral only, no fallback. Synonym ignore-pod
respect-pod-specthe workload's own only, central never consulted

Versions

Beyond semver, flexible versions.

Many tools only support 3-part semver style versions, to the exclusion of any other format. Keelson doesn't try to force you to use semver - you can use whatever length you want. Some projects don't need 3 parts; 2 or even 1 might be enough, others need more. For example, it's perfectly reasonable to combine a 3 part base image version with a 3 part package, app or script-set version, and add a patch of your own on the end, resulting in 7 parts.

majorthe first part, always
minorthe second part, always
patchthe last part, whatever the length
part-<n>any part by number, 1-indexed, unbounded

Everything to the left of the chosen part must match exactly. On a five part tag like 1.15.1.36.1, major, minor and patch give you the first, second and fifth, which leaves the third and fourth with no other name: that is what part-3 and part-4 are for. A tag with too few parts for the policy is skipped and logged.

Updates

Careful, respectful, minimal updates.

Great deployment systems run a validation pass against the API before applying their manifests. If some other system has written a different value to a field with a different ownership on the field, it causes that validation to fail. By default Keelson matches the existing ownership when it modifies the image field leaving it exactly how it was found. However it's also reasonable to want Keelson to say it changed the field itself, so that's an option too. Regardless, every write is scoped to the image field alone, so nothing else on the workload is at risk regardless of what else manages it.

mimicapplies as the field's existing owner, the default
patcha strategic-merge patch, attributed to Keelson
claimapplies as Keelson, taking ownership of the field

Security

Works out of the box, but easy to cut down.

The included RBAC covers the whole feature set so it works with any configuration. Many installations need a lot less, so the manifests are structured so it's easy to remove what you don't need. Reducing it is documented and mostly automatic when using Helm and explicit when using Kaptain.

  • Cluster scope drop the global Namespace permission and the redundant own-namespace role pair
  • Namespace scope drop the all-namespaces ClusterRole and binding, and supply the roles per namespace
  • No pull secrets using one cloud workload identity mode alone, drop the Secret permissions entirely
  • No service account secrets with KEELSON_RESPECT_SA_PULL_SECRETS false, drop the ServiceAccount permission
  • Fewer kinds reduce the remaining roles to just the kinds you actually watch
  • No suspended CronJobs drop the Job creation permission

Drop-in

An *almost* drop-in replacement for Keel.

Set KEELSON_CONFIG_MODE=keel and Keelson reads your existing keel.sh/ annotations, so most workloads move across untouched.

Carries over

  • keel.sh/ annotations, camelCase or hyphenated
  • Deployment, StatefulSet, DaemonSet, CronJob
  • pollSchedule as @hourly, @daily, @weekly, @monthly, @yearly, or @every with a duration: 30s, 5m, 1h30m, 1.5h
  • policy, matchTag and matchMode
  • initContainers, monitorContainers and imageVolumes, with Keel's defaults

Not supported

  • policy: force, rejected outright
  • Digest tracking behind a mutable tag, such as :latest
  • approvals, approvalDeadline, and releaseNotes
  • Raw cron expressions in pollSchedule
  • Workload configuration in labels. Keelson only reads annotations

In addition to the 4 Kinds that Keel supports, Keelson also supports Argo Rollouts and Jobs. Jobs are handled by annotating a suspended CronJob, which Keelson triggers on update.

Migration Path

There are two options for migrating from Keel to Keelson:

  1. Take down Keel and stand up Keelson in keel or both mode. Verify that you're not using any unsupported features before doing this.
  2. Stand up Keelson side by side next to Keel in keelson mode and migrate workloads over one at a time.

Note that a workload can only have one annotation prefix or the other, never both.

04 Install

Install it your way.

There are many ways to deploy a workload to Kubernetes. Keelson directly supports the most popular method (Helm) and the best method (Kaptain), and is adaptable to any other way with a little work.

  • Kaptain keelson › Kaptain

    A one-line entry in your product or meta environment, plus any config overrides.

    spec:
  contents:
    - ghcr.io/keelson-pro/keelson/keelson-package:1.42.1.42.1
  • Helm keelson › Helm

    The chart, as an OCI artefact or from the classic repo, with values for scope, registries and RBAC.

    $ helm install keelson oci://ghcr.io/keelson-pro/helm-charts/keelson \
    --namespace cluster-infra --create-namespace \
    --set image.tag=1.42.1.42.1
  • Custom keelson › Raw Apply

    The plain manifests, for anyone who would rather read and apply them than template them.

    $ helm repo add keelson https://keelson-pro.github.io/keelson-helm-chart
$ helm repo update
$ helm template keelson keelson/keelson --namespace cluster-infra --set image.tag=1.20.1.36.1 --output-dir rendered
$ kubectl apply --server-side --field-manager="yourFieldManager" -R -f rendered
  • Version coverage keelson › Kubernetes Version Support

    Keelson itself will work with any version of Kubernetes 1.22 and up, however the tooling in the images has a narrower range. Each keelson-package image supports the Kubernetes version in its 3rd and 4th parts, plus one version either side of it.

    The only other constraint is that earlier manifests with a later image can fail at startup on validation. So keep the manifest set and the 1st and 2nd parts of the image version in sync. This is automatic with both Kaptain and Helm.

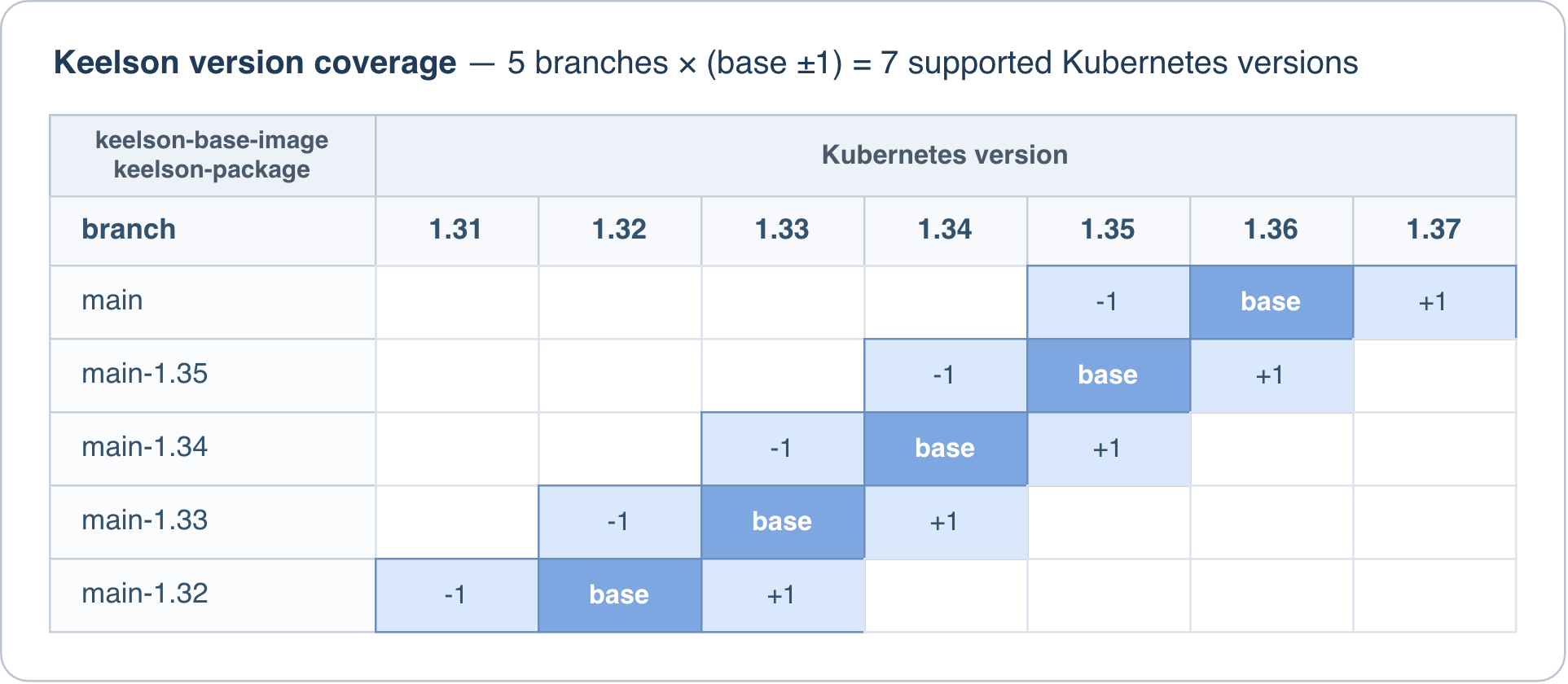

Grid of Keelson releases against the Kubernetes versions each supports
Fig. 2 Which keelson-package image covers which Kubernetes version

05 Docs

Living documentation in the repositories

Each focused document lives with the system it describes so it's more likely to be kept up-to-date.

06 GitHub

GitHub Org And Repos

Single responsibility repos, organised with Branchout. The Keelson controller repo is the heart and soul of the system. The rest exist so it can be built, packaged and installed cleanly, in several ways, with support for different Kubernetes versions and total consistency otherwise.

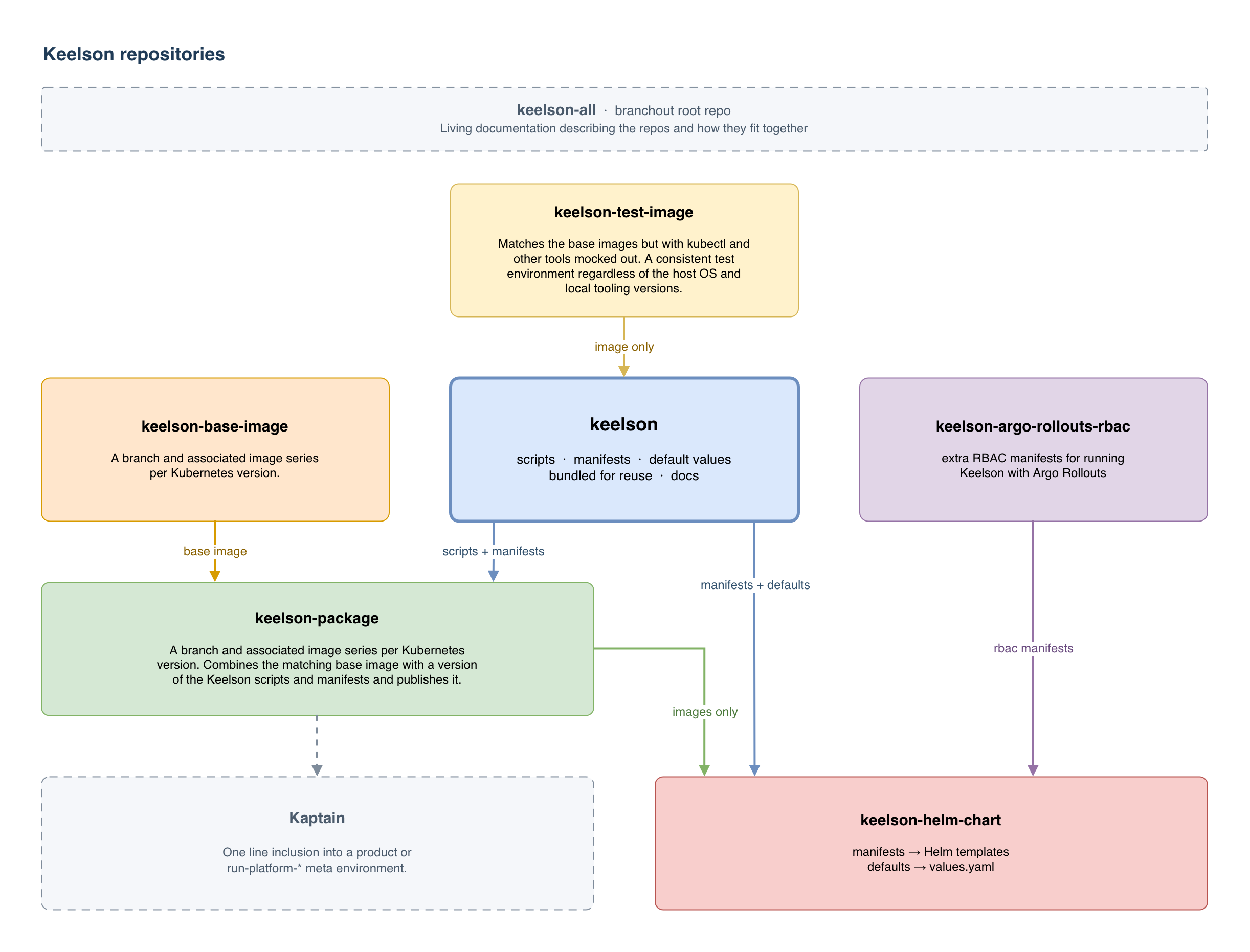

Diagram of the Keelson repositories and how they feed into each other
Fig. 3 How the repositories feed each other.
